COD ORIGINAL: 02231924, 02231975, 04151389, 04157756, 04157763, 04231497, 02101175, 04158552, 04158559, 04231506, 2101175, 213 7828, 2137828, 223 1377, 223 1924, 223 1975, 2231377, 2231924, 2231975, 4151389, 4157756, 4157756N, 4157763, 4158552, 4158559, 4231506, D2137828, D2231924, D2231975, D4157756, F100.004.157.756, F100004157756, K2101175, VD04157756, 6005000612, 6005002646, 6005009126, 6005027664, 35-73, 35-221, VPB1032, 89495110,

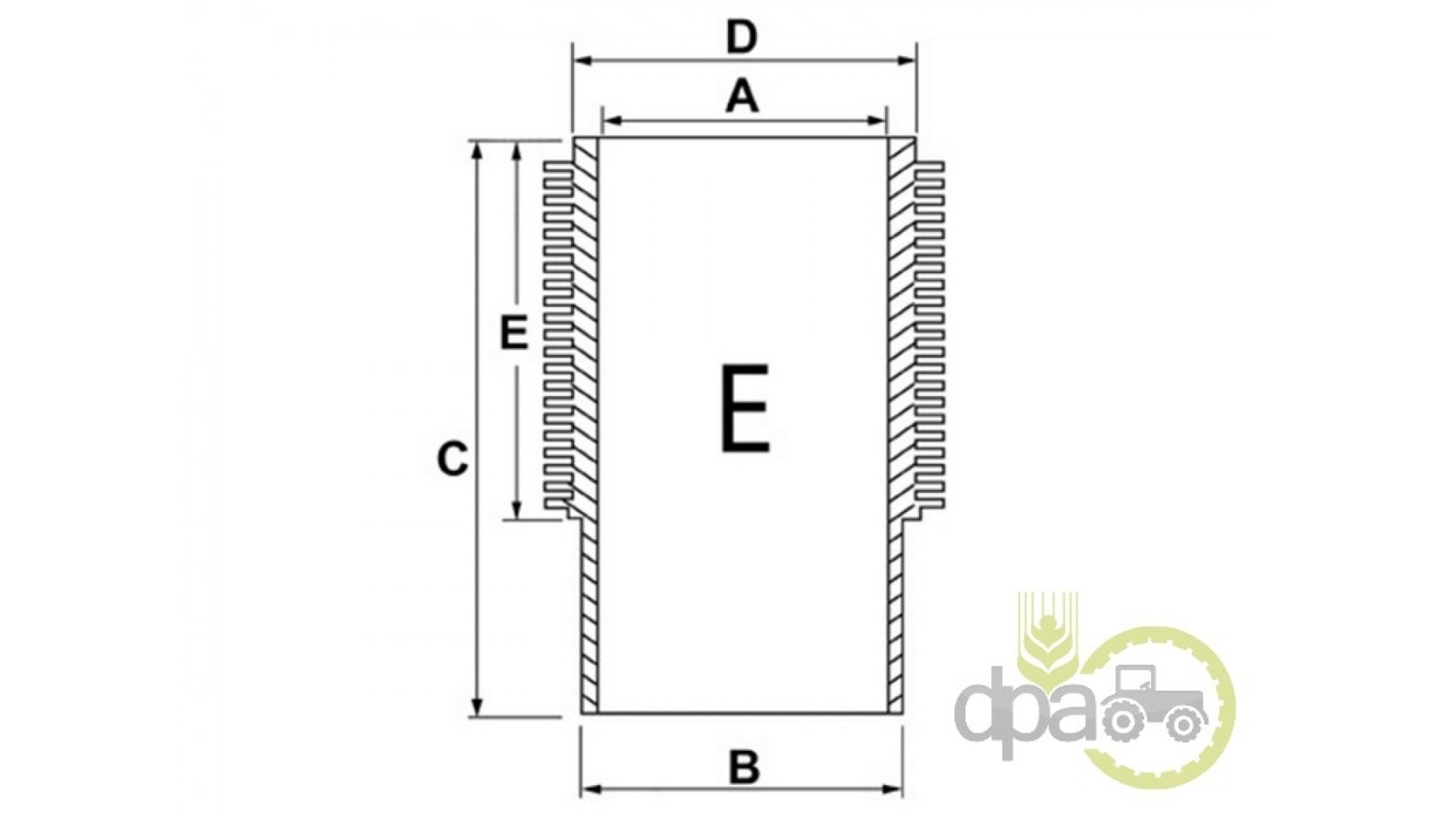

DATE TEHNICE:

A: 100 mm
B: 110 mm
C: 223.3 mm
D: 120 mm
E: 137.3 mm


SE POTRIVESTE LA:

Deutz

Seria: 06
2506, 3006, 3006F, 4006, 4006F/S, 4006U, 4506, 4506F, 4506US, 5006, 5006F, 5006U, 5206, 5206F, 5206U, 5506, 5506F, 5506U, 6006, 6006F, 6006U, 6206, 6206F, 6206U, 6806, 6806F, 6806U, 7006, 7006F, 7006U, 7206, 7206A, 7206F, 7206U, 7506, 7506F, 7506U, 9006, 9006A, 9006F, 9006U,

Seria: 07
2807, 3607, 3607F, 4007, 4007F, 4007U, 4507, 4507A, 4507F, 4807, 4807A, 4807F, 5207, 5207A, 5207F, 6207, 6207A, 6207F, 6507, 6507A, 6507F, 6807, 6807A, 6907, 7007, 7007A, 7207, 7207A,

Seria: 07C
4507C, 4807C, 5207C, 6207C, 6507C, 6807C, 6907C, 7007C, 7207C,

Seria: Agrocompact 3
Agrocompact 3.30V/F, Agrocompact 3.70V/F,

Seria: Agroprima
Agroprima 6.06,

Seria: Agroxtra
Agroxtra 4.07, Agroxtra 6.07,

Seria: Classique
55,

Seria: DX
DX110, DX110A, DX36, DX3700, DX50, DX55, DX85, DX85A, DX90, DX90A, DX92, DX92A,

Seria: DX3 SC
DX3.10SC, DX3.30SC, DX3.60SC, DX3.65SC, DX3.70SC,

Seria: DX3 V/F/S
DX3.10V, DX3.30V/F, DX3.70V/F,

Seria: DX3 VC
DX3.10VC, DX3.30VC, DX3.60VC, DX3.65VC, DX3.70VC,

Seria: DX4
DX4.10, DX4.11,

Seria: DX6
DX6.05, DX6.06, DX6.10,

Seria: Dxab
Dxab 110, Dxab 90,

Seria: Dxbis
Dxbis 110, Dxbis 85, Dxbis 90,

Seria: Intrac
Intrac 2002, Intrac 2003, Intrac 2004, Intrac 2005,


Renault

50
50-12LB, 50-12V, 55-12F, 55-12LB, 55-12V, 55-14LB, 55-14V,

70
70-12F, 70-12LB, 70-12V, 70-14F, 70-14LB, 70-14V,

80
80-12F, 80-12V, 80-14F, 80-14V,

Basso
130, 140,

Dionis
110, 120, 130, 140,

Fructus
110, 120, 130, 140,

Pales
210, 230,


Fendt



TIP MOTOR:

F 4L 912 - Deutz
F 3L 912 - Deutz
F 6L 912 - Deutz
F 5L 912 - Deutz
F 4 L913 - Deutz
F 2L 912 - Deutz
